Single Phase 150W Jewellery Laser Welding Machine 10x Microscope
Features:
1. All accessories of the mini jewelry laser welder using high technology integrated technology, stable and functional.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance
5. Human-based design accords with ergonomics, no fatigue after long time working.
Character:
1. Jewelry laser welder is high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2. Laser is quick, Frequency can reach 20HZ.
3. Jewelry, glasses frame, mould, dental teeth need laser welding way which have beautiful welding
joints.
4. Jewelry Laser welding machine is widely used in all kinds of metal like gold, sillver, bronze, aluminum,
steel and titanium!
5. Laser welding is new product, Buying this product can help you win advanced cleaning market!
6. We manufacture power supply which have big advantage in prices and after sale service.
7. Engineer door to door service.
| Laser Power | 1500W |
| Max Single Pulse Engery | 80J |
| Laser Wavelength | 1064nm |
| Pulse Frequency | ≤100Hz |
| Repeating Precision | ±0.1mm |
| Pulse width | ≤20ms |
| Spot Adjusting Range | 0.1-3.0mm |
| Power Consumption | 6KW |

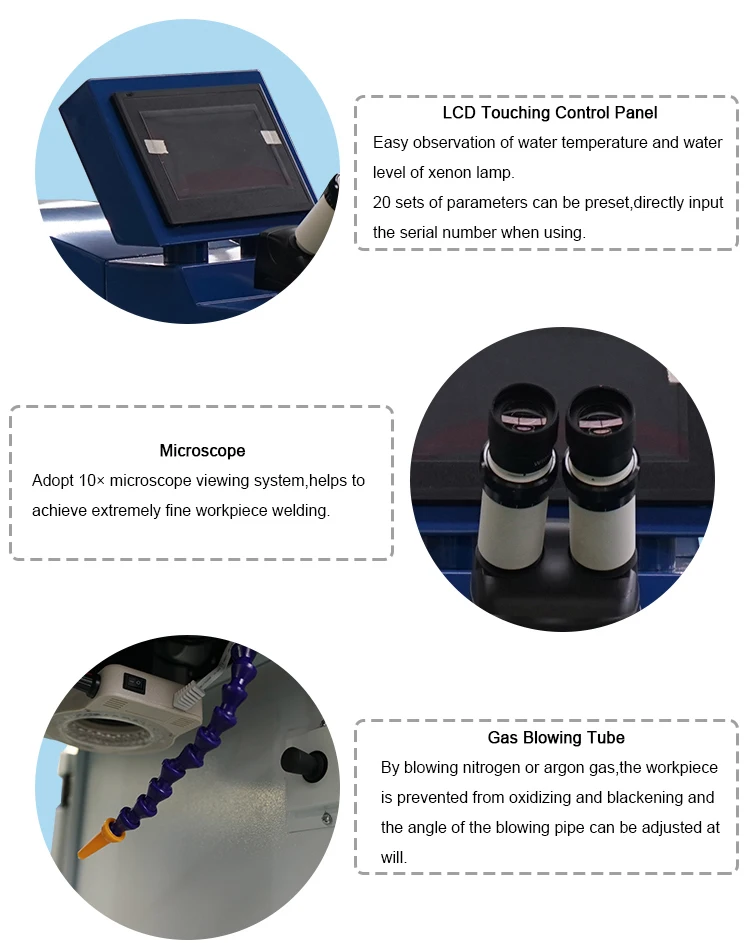

| Viewing System | Microscope |
| Voltage | Single-Phase 220V/50HZ/20A |
| Cooling | Water Cooling |
The jewelry/dental laser weldeing machine is specifically for jewelry laser welding of a product, mainly used in gold,bronze,stainless steel and silver ornaments of the hole and spot welding blisters.This laser welding machine is widely used in jewelry,dental,Advertisement sign field,the prospect of market is good.
