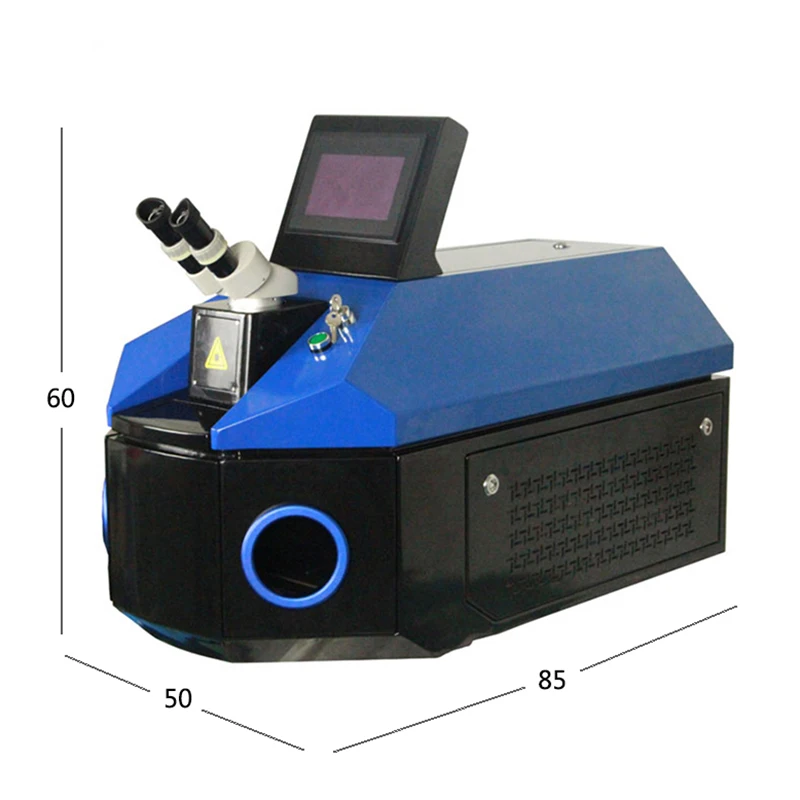

Gold Siler Ring Necklace Jewelry Mould Laser Spot Welding Machine
Advantages:
1. High-performance laser power supply, single pulse of high power, low power consumption and not hot when welding.
2. It doesn't need to fill the solder, welding fast,spot distributed evenly,the workpieces deformation is small, beautiful
appearance.
3. Ceramic laser cavity imported from internationally famous manufacturers to ensure the machine is high quality and high performance.
4. Unique YAG crystal cooling method to improve the beam quality and xenon lamp lifetime, reducing the use of cost.
Parameters:
| Laser Power | 200W |
| Max Single Pulse Engery | 140J |
| Laser Wavelength | 1064nm |
| Pulse Frequency | ≤100Hz |
| Repeating Precision | ±0.1mm |
| Pulse width | ≤20ms |
| Spot Adjusting Range | 0.1-3.0mm |
| Power Consumption | 6KW |

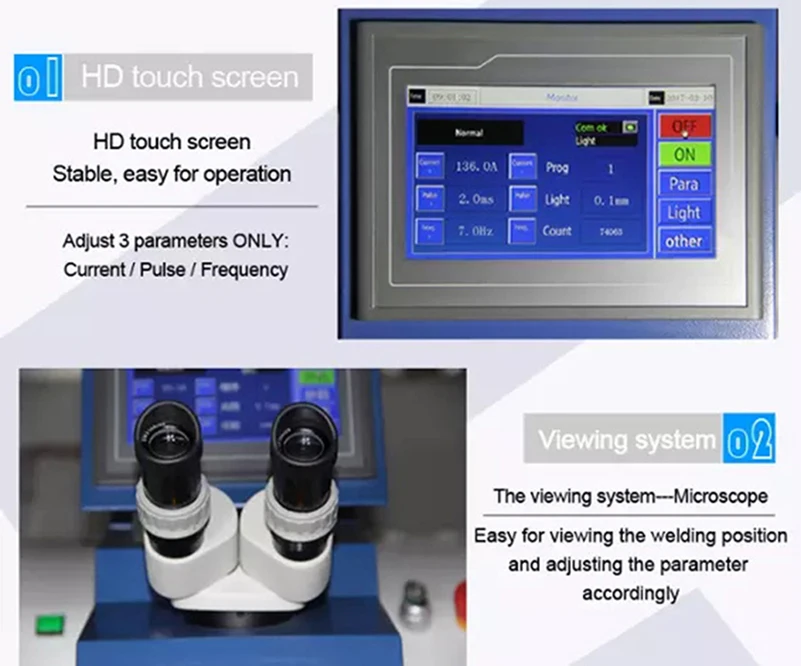

| Viewing System | Microscope |
| Voltage | Single-Phase 220V/50HZ/20A |
| Cooling | Water Cooling |
Application:
Widely used in aviation,aerospace,sporting goods,jewelry,gold
head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,
mechanical processing,automobile and other industries,especislly for gold and
silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding
RFQ:
If the machine power supply quality is bad, what is problem will happened to laser welder ?
1) The machine easy to miss the focusing
2) The machine lifetime will short more. Maybe 2 years or 3 years need to change
3) The laser energy is not stable, this is because the laser power supply can not offer stable voltage.All we know, YAG laser
machine xenon lamp need to vltage to make high light after through crystal to make laser.
|
|
CCD Mirco Jewelry Repairing Laser Welding Machine Goldsmiths Dental Lab Eyeglasses Frame Welding Images
|
